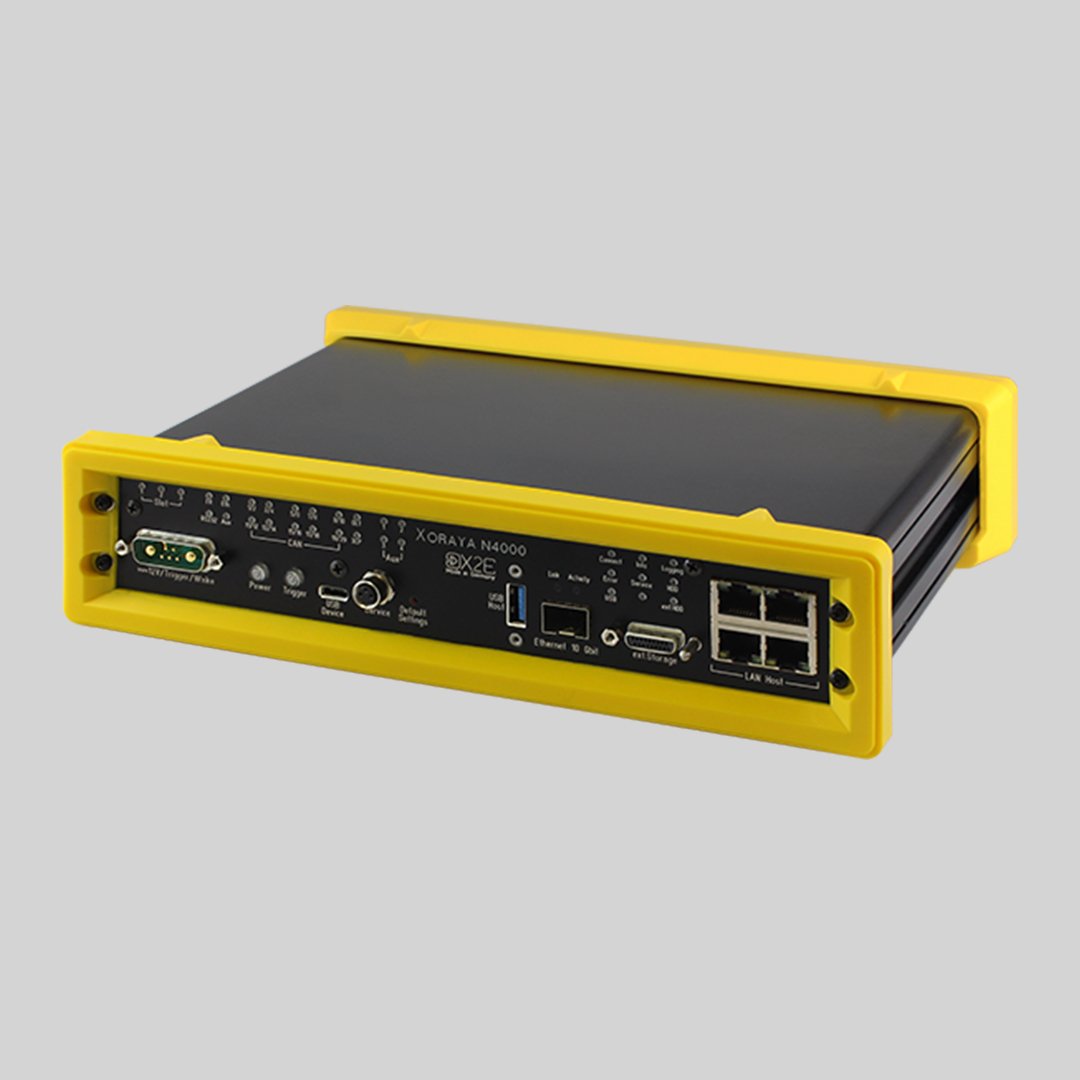

The XORAYA N4000. The latest generation of X2E’s high performance automotive data loggers. In comparison to its predecessor (XORAYA Z7), it’s a significantly more powerful hardware. Recording data with up to 3 Gbit/s. Plus, the logger is now equipped with an SFP+ interface (for 10GBase-T) and a hermetically sealed, active cooling system.

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA ML-N4000, a compact, high-performance data logger designed for recording data from multiple vehicle bus systems in demanding test and development environments.

Key features:

• Individually configurable interfaces for flexible multi-bus logging

• High recording performance with data rates of up to 3 Gbit/s

• Compact form factor suitable for in-vehicle and bench test setups

• Supports data storage to internal or external memory

• Real-time data forwarding to third-party systems via Ethernet

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA Datacube-C6+, an enhanced version of the Datacube-C6 designed for faster and more efficient readout of XORAYA External Storage Units (ESU). The C6+ delivers a significantly increased download performance, making it ideal for test environments where large volumes of data need to be offloaded quickly.

The Datacube-C6+ supports simultaneous connections to up to six ESUs, all of which can be accessed and managed via a terminal or PC. With download speeds of up to 5 Gbit/s, optimised to match the maximum read performance of the integrated SSDs, the unit ensures rapid, reliable data handling without the need for a data logger during readout.

Product highlights:

• High-speed readout station for up to 6× XORAYA ESUs

• Download rates of up to 5 Gbit/s

• Stand-alone operation — no data logger required

• Simple and intuitive access via terminal or PC

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA N4000+, an advanced evolution of the XORAYA N4000 automotive data logger, designed for engineers working on high-data-rate vehicle testing, system integration, and complex network analysis. The N4000+ builds on a proven platform with increased processing capability, expanded interfaces, and additional synchronisation features—making it well suited to demanding development and validation programmes where timing accuracy, data integrity, and reliability are critical.

Key features and improvements:

• More powerful FPGA for higher performance data processing

• Support for a 4× digital input add-on card

• Expanded interface options for flexible system configuration

• Transparency Mode, DLT-Inject, and PTP time synchronisation for precise, time-aligned logging

• Ethernet relay function to maintain network continuity when the logger is powered down

• Revised cooling design extending the operating temperature range by +5 °C

VTS supports customers with distribution, product selection guidance, and integration advice, helping ensure the XORAYA N4000+ is correctly configured for each testing application.

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA External Storage Units, enabling log data to be stored externally without needing to clear space on the data logger between test runs. This helps reduce downtime and keeps test programmes moving, especially during back-to-back vehicle or bench testing.

Any XORAYA data logger equipped with an external storage interface can be used to download recorded data to the ESU. The unit is powered directly from the data logger or XORAYA Datacube via the same cable used for data transmission, removing the need for an external power supply. A dedicated disconnect button allows safe removal, while LED indicators provide clear feedback on power, access activity, and connection status.

Product highlights:

• Stores up to 8 TB of log data

• Compatible with all XORAYA data loggers with an external storage interface

• Data can be read out via XORAYA Datacube-C6

• Powered via the data connection — no external power supply required

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA N2000, a compact automotive data logger designed for flexible use in modern vehicle testing environments. Its small footprint and broad interface support make it well suited to applications where multiple vehicle networks need to be recorded within limited space.

Key features:

• Compact design for in-vehicle and mobile test setups

• Supports CAN, FlexRay, LIN, RS-232, analogue signals, Automotive Ethernet (100/1000BASE-T1), and Gigabit Ethernet

• High recording performance with data rates of up to 2 Gbit/s

• Suitable for simultaneous logging of multiple bus systems

VTS provides distribution, product guidance, and integration support to help ensure the XORAYA N2000 fits seamlessly into your test setup.

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA Datacube-C6, a high-speed readout station designed for fast and efficient data transfer from XORAYA External Storage Units (ESU). It allows recorded log data to be accessed without using a data logger, helping reduce turnaround time between test runs.

Up to six ESUs can be connected simultaneously and accessed via a terminal or PC. The Datacube-C6 operates as a stand-alone copy station, delivering download speeds of up to 3 Gbit/s, matching the maximum read speed of the integrated 1 TB SSD for rapid data offload.

Product highlights:

• Copy station for up to 6× XORAYA ESUs

• High-speed data transfer with download rates up to 3 Gbit/s

• Stand-alone operation — no data logger required

• Simple, intuitive setup via terminal or PC
