Data Storage

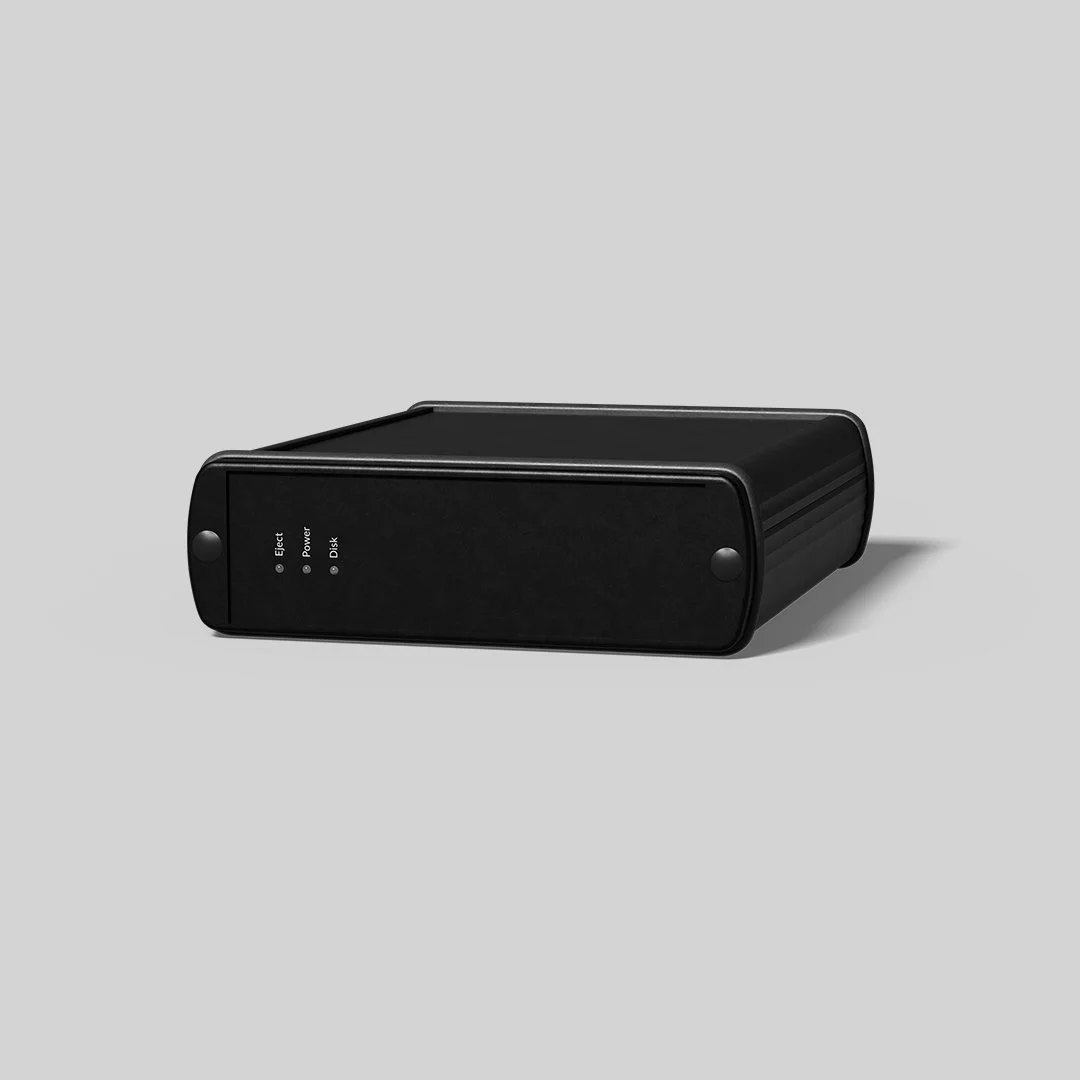

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA External Storage Units, enabling log data to be stored externally without needing to clear space on the data logger between test runs. This helps reduce downtime and keeps test programmes moving, especially during back-to-back vehicle or bench testing.

Any XORAYA data logger equipped with an external storage interface can be used to download recorded data to the ESU. The unit is powered directly from the data logger or XORAYA Datacube via the same cable used for data transmission, removing the need for an external power supply. A dedicated disconnect button allows safe removal, while LED indicators provide clear feedback on power, access activity, and connection status.

Product highlights:

• Stores up to 8 TB of log data

• Compatible with all XORAYA data loggers with an external storage interface

• Data can be read out via XORAYA Datacube-C6

• Powered via the data connection — no external power supply required

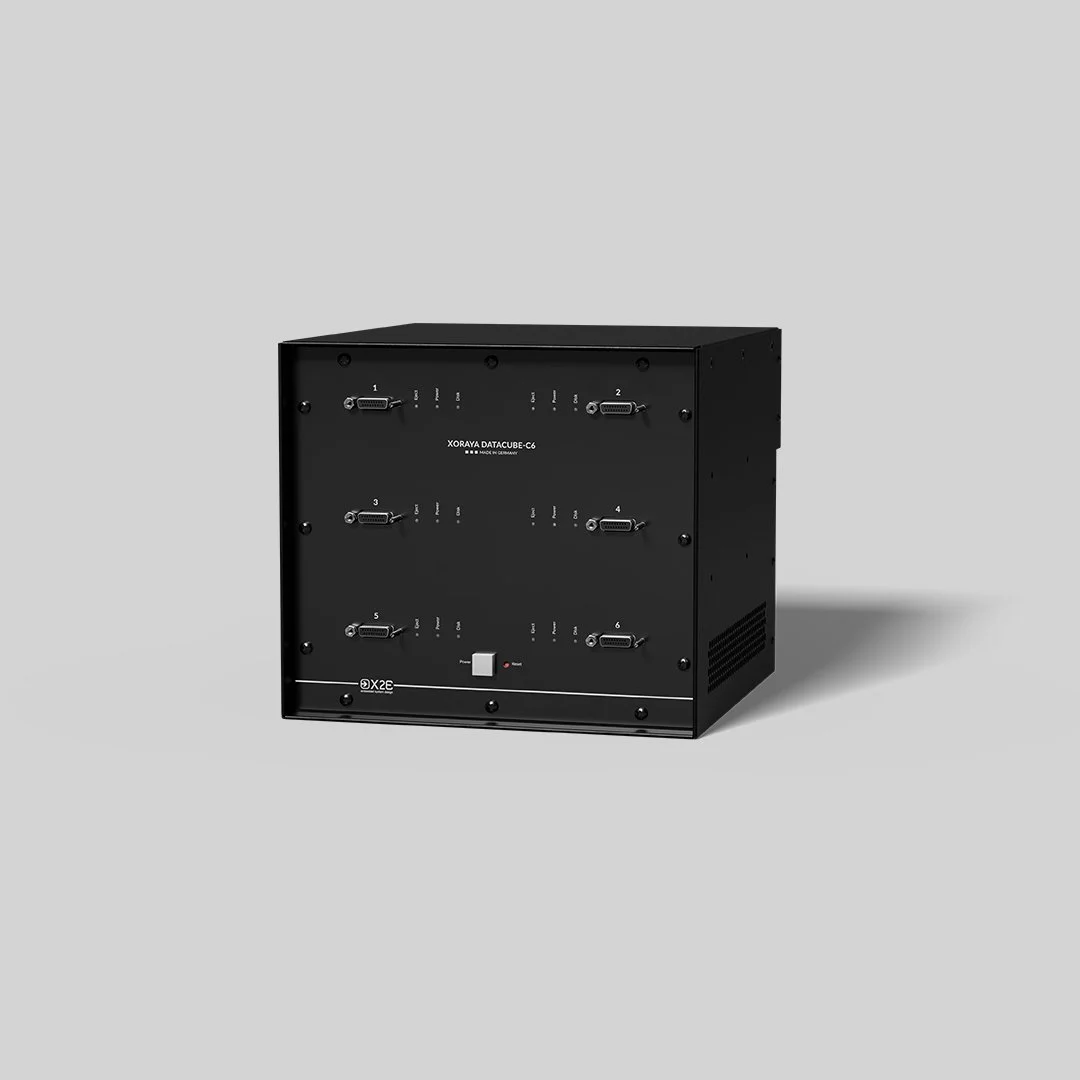

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA Datacube-C6, a high-speed readout station designed for fast and efficient data transfer from XORAYA External Storage Units (ESU). It allows recorded log data to be accessed without using a data logger, helping reduce turnaround time between test runs.

Up to six ESUs can be connected simultaneously and accessed via a terminal or PC. The Datacube-C6 operates as a stand-alone copy station, delivering download speeds of up to 3 Gbit/s, matching the maximum read speed of the integrated 1 TB SSD for rapid data offload.

Product highlights:

• Copy station for up to 6× XORAYA ESUs

• High-speed data transfer with download rates up to 3 Gbit/s

• Stand-alone operation — no data logger required

• Simple, intuitive setup via terminal or PC

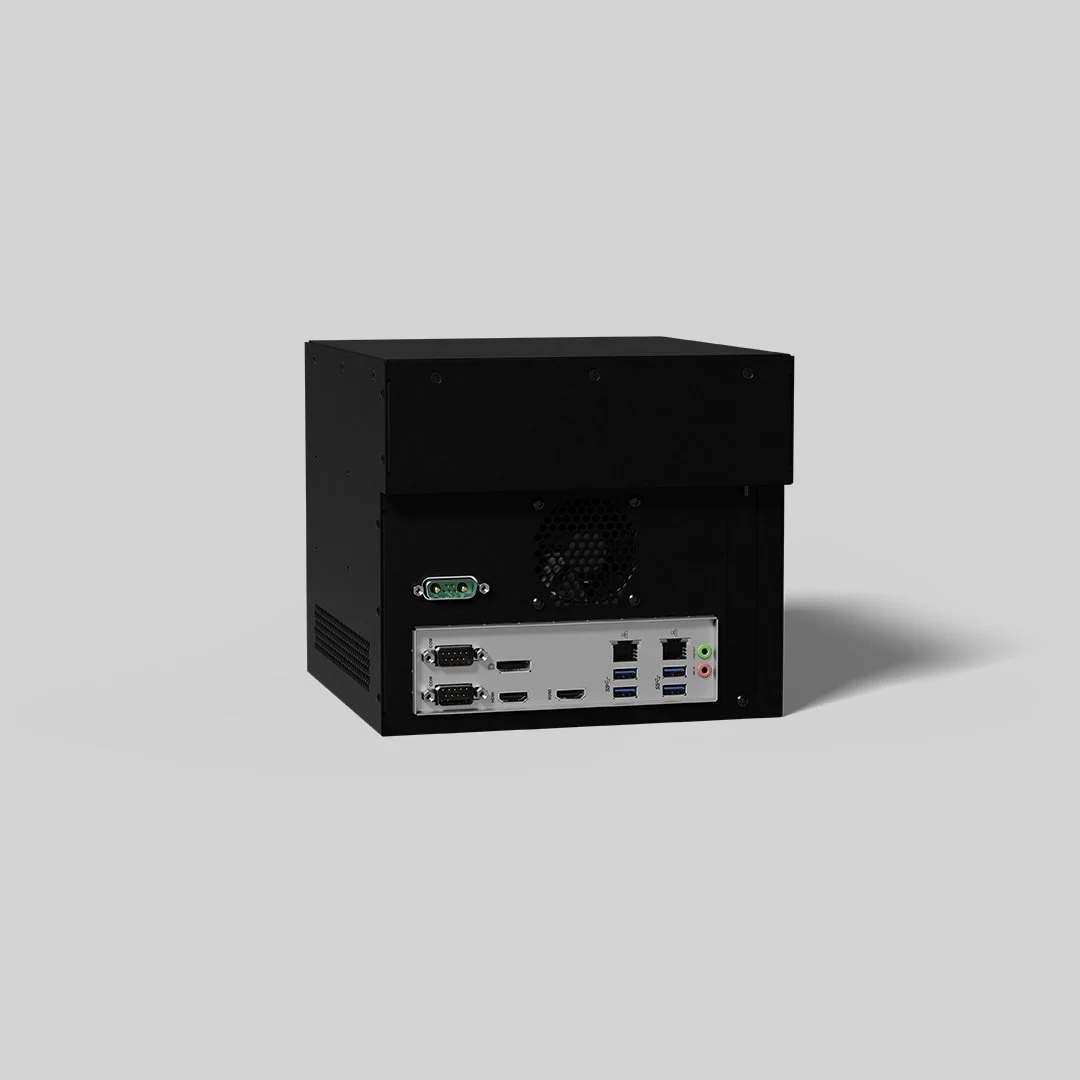

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA Datacube-C6+, an enhanced version of the Datacube-C6 designed for faster and more efficient readout of XORAYA External Storage Units (ESU). The C6+ delivers a significantly increased download performance, making it ideal for test environments where large volumes of data need to be offloaded quickly.

The Datacube-C6+ supports simultaneous connections to up to six ESUs, all of which can be accessed and managed via a terminal or PC. With download speeds of up to 5 Gbit/s, optimised to match the maximum read performance of the integrated SSDs, the unit ensures rapid, reliable data handling without the need for a data logger during readout.

Product highlights:

• High-speed readout station for up to 6× XORAYA ESUs

• Download rates of up to 5 Gbit/s

• Stand-alone operation — no data logger required

• Simple and intuitive access via terminal or PC
