Low Volume Bespoke Harnesses

Low-volume, custom-built harnesses designed around your exact pinouts, connectors, and testing requirements — built cleanly, labelled clearly, and ready to use.

Get a harness quote
Get a harness quote
bespoke OBD Cables
bespoke OBD Cables

See how our lab car and subsystem rig builds integrate custom harnesses into complete test environments.

When off-the-shelf doesn’t match the project

Low-volume programmes rarely fit standard harnesses. Pinouts change, access points are needed for testing, and prototype builds often require practical breakouts and custom lengths. Without a properly designed harness, teams lose time adapting temporary solutions and troubleshooting avoidable wiring issues.

!

Prototype pinouts and connector types don’t match standard parts

!

Test access points are needed for logging, diagnostics, or breakouts

!

Temporary wiring creates inconsistent results and avoidable faults

!

Poor labelling and layout slows debugging and handovers

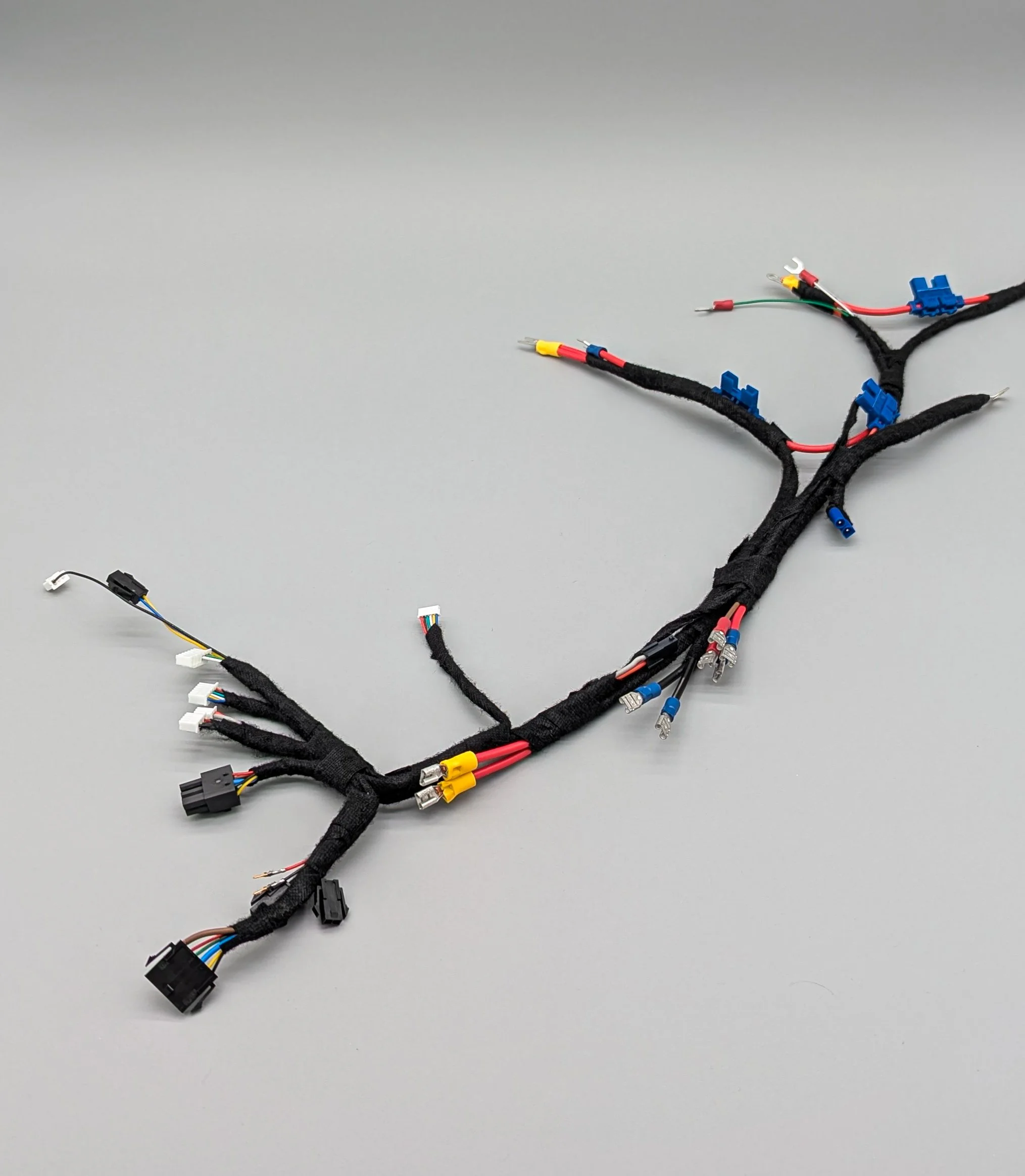

A black automotive wiring harness with various colorful connectors and wires laid out on a gray surface.

What We Build

Custom Pinouts & Connectors

Built to your exact connector types, pin configurations, and cable lengths — no forced compromises.

Breakout & Inline Harnesses

Designed for logging, diagnostics, and test access — clean breakouts without introducing instability.

Built, Tested & Clearly Labelled

Every harness is assembled cleanly, verified before delivery, and labelled for straightforward installation and debugging.

How It Works

1

Share your requirements

Provide connector types, pinouts, lengths, and intended application or test use.

2

Design & build

We assemble the harness cleanly, following your exact configuration and routing requirements.

3

Delivered ready to use

Fully assembled, labelled, and verified before delivery to reduce installation issues.

Reducing Rework Through Structured Harness Builds

Without a bespoke low-volume harness

  • Teams adapt temporary wiring that’s hard to reproduce
  • Connector and pinout mismatches cause avoidable faults
  • Poor labelling slows installation and debugging
  • Changes create rework and programme delays

With VTS harness builds

  • Harnesses built to your exact pinouts and connectors
  • Clear routing and labelling for faster handover
  • Breakouts designed for practical test access
  • More reliable results and less rework on the programme

Speak to an Engineer About Your Harness Design

If you need a low-volume harness built around your exact connectors, pinouts, and test access requirements, we can scope it quickly and deliver a clean, labelled solution that’s ready to use.

Get a Harness Quote

Frequently Asked Questions

Common questions about low-volume harness builds, lead times, and what we need to quote accurately.

What information do you need to quote a harness? +
Connector types, pinout details, cable lengths, intended application (vehicle, bench, logging, diagnostics), and quantity. If anything is still evolving, we can help define a practical starting scope.
Do you build breakout harnesses for test access? +
Yes. We can build inline or breakout harnesses that provide practical access points for logging, diagnostics, and development testing.
Are harnesses tested before delivery? +
Yes. Builds are verified before delivery to reduce installation faults and improve reliability in the test environment.
Can you support changes and revisions during a programme? +
Yes. Low-volume builds often evolve as prototypes change. We can support revisions and updates as requirements mature.
What lead time should we expect? +
Lead time depends on complexity, connector availability, and quantity. Once we understand your requirements, we’ll confirm a realistic schedule and keep you updated through build and delivery.
