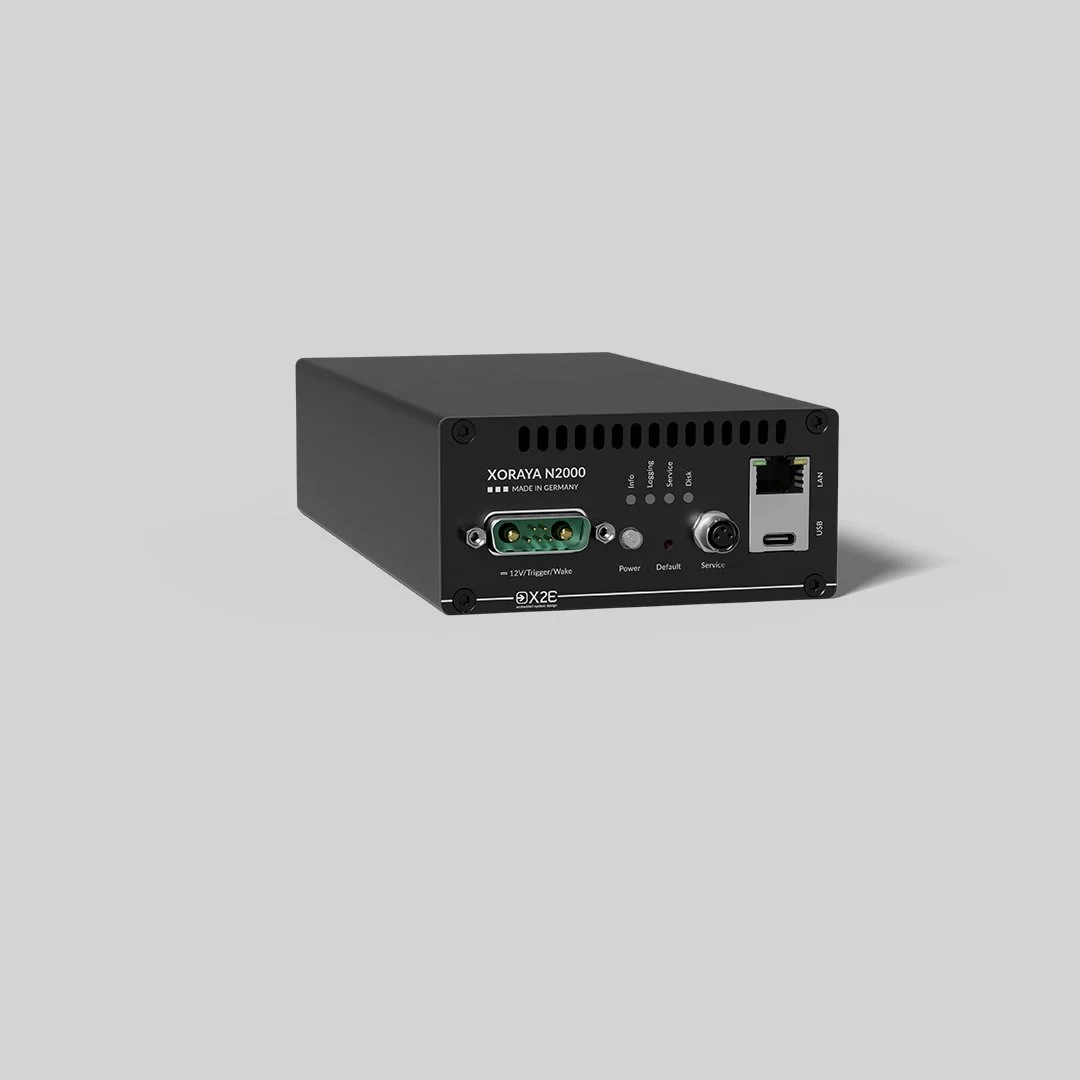

Vehicle Testing Solutions (VTS) distributes the X2E XORAYA N2000, a compact automotive data logger designed for flexible use in modern vehicle testing environments. Its small footprint and broad interface support make it well suited to applications where multiple vehicle networks need to be recorded within limited space.
Key features:
Compact design for in-vehicle and mobile test setups
Supports CAN, FlexRay, LIN, RS-232, analogue signals, Automotive Ethernet (100/1000BASE-T1), and Gigabit Ethernet
High recording performance with data rates of up to 2 Gbit/s
Suitable for simultaneous logging of multiple bus systems
VTS provides distribution, product guidance, and integration support to help ensure the XORAYA N2000 fits seamlessly into your test setup.
Vehicle Testing Solutions (VTS) distributes the X2E XORAYA N2000, a compact automotive data logger designed for flexible use in modern vehicle testing environments. Its small footprint and broad interface support make it well suited to applications where multiple vehicle networks need to be recorded within limited space.
Key features:
Compact design for in-vehicle and mobile test setups
Supports CAN, FlexRay, LIN, RS-232, analogue signals, Automotive Ethernet (100/1000BASE-T1), and Gigabit Ethernet
High recording performance with data rates of up to 2 Gbit/s
Suitable for simultaneous logging of multiple bus systems
VTS provides distribution, product guidance, and integration support to help ensure the XORAYA N2000 fits seamlessly into your test setup.
Interfaces
| Configuration | HS-CAN / CAN-FD | RS-232 | LIN | Analog | 100 / 1000BASE-T1 | Gbit Ethernet | FlexRay |
|---|---|---|---|---|---|---|---|
| C6B2GE2A6R4L4 | 6 | 4 | 4 | 6 | 2 | 2 | – |
| C6B4A6L4F2 | 6 | – | 4 | 6 | 4 | – | 2 |
| C6 | 6 | – | – | – | – | – | – |
Technical Data
| Hardware | ||
|---|---|---|
| Processor | Xilinx Dual ARM Cortex-A53 (ZU3CG) | |
| Memory | 128 MB Flash / 2 GB RAM | |
| Data Rate | Up to 2 Gbit/s | |
| Data Storage | Up to 1 TB internal storage | |
| Recording Modes | Internal storage / PC via Ethernet | |
| Quick Boot Buffer | 1.5 GByte / 6 sec | |
| Timestamp | 100 ns | |
| External Operating Voltage | 12 V DC (temporarily 6 to 32 V) | |
| Power consumption (at 12 V) |
Standby: max. 1 mA Operating: max. 3.1 A Charging PCAPs: max. 2.7 A |
|
| Temperature Range | -40 to +65 °C | |
| Dimensions | 50 × 105 × 215 mm (H × W × D) | |
| Weight | 1.1 kg | |
| Housing | Aluminium anodised | |
| Other | Active cooling, real-time clock, powercap unit | |
| Software | ||
| Operating System | Embedded Linux | |
| Storage Formats | X2E Native, X2E ASCII, Carmen-Journal (V3.0), Wireshark PCAP/PCAPNG, Vector BLF, Vector ASCII, XAA for GNLog, DLT AUTOSAR, System Events, NMEA for GPS, Raw RS-232, CSV for Analog/CCP, CSV for Signals, Video Extractor, MATLAB Signals, MDF Signals/Buslogging | |
| Software Protocols | CCP/XCP, PLP, XLP | |
| Wake up | CAN, RS-232, LIN, FlexRay, Wakeline or Trigger | |
| Software | XORAYA Suite, XORAYA WebGUI and XORAYA SDK for Windows & Linux | |
| Other | Automatic Sleep Mode | |
| Interfaces | ||
| Out-of-the-box Configurations | ||
| Configuration 1 (C6B2GE2A6R4L4) |
6× HS-CAN/CAN-FD 4× RS-232 4× LIN 6× Analog 2× 100/1000BASE-T1 2× Gbit Ethernet |
|
| Configuration 2 (C6B4A6L4F2) |
6× CAN 4× 100/1000BASE-T1 6× Analog 4× LIN 2× FlexRay |
|
| Configuration 3 (C6) | 6× CAN | |
| Other Interfaces | ||
| Non-logging interfaces | 1× 12V/Trigger/Wake, 1× USB OTG, 1× LAN Host, 1× Service | |
