The RL-R19 is a portable vibration spectrum analyser and data acquisition system designed for automotive testing, durability validation, and field measurement applications.
It enables engineers to capture vibration behaviour, analyse frequency content, and record dynamic data during real-world development activities, endurance testing, and subsystem validation work.
Built for mobile deployment and flexible sensor integration, the RL-R19 helps teams perform structured diagnostics and vibration analysis without the need for complex laboratory setups.
Supplied by Vehicle Testing Solutions as an authorised distributor of RULA Technologies products.
The RL-R19 is a portable vibration spectrum analyser and data acquisition system designed for automotive testing, durability validation, and field measurement applications.
It enables engineers to capture vibration behaviour, analyse frequency content, and record dynamic data during real-world development activities, endurance testing, and subsystem validation work.
Built for mobile deployment and flexible sensor integration, the RL-R19 helps teams perform structured diagnostics and vibration analysis without the need for complex laboratory setups.
Supplied by Vehicle Testing Solutions as an authorised distributor of RULA Technologies products.

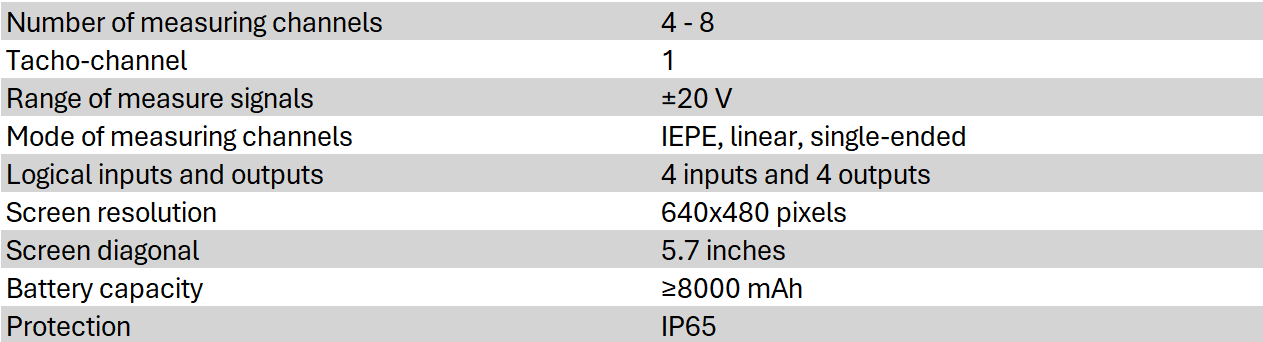

| Specification | Details |
|---|---|
| Number of measuring channels | 4 ÷ 8 |
| Tacho-channel / outputs | 1 / 1 |
| Range of measured signals | ±20 V |
| Frequency range of measured signals | 0.1 ÷ 60,000 Hz |
| Mode of measuring channels | IEPE, linear, single-ended |

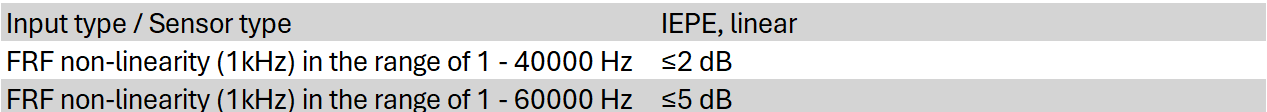

| FRF non-linearity at 1 kHz (1 ÷ 40,000 Hz) | ≤2 dB |
| FRF non-linearity at 1 kHz (0.1 ÷ 60,000 Hz) | ≤5 dB |
| DAC / ADC resolution | 24 bits |
| Sensor type | IEPE, linear |
| Logical inputs and outputs | 4 inputs and 4 outputs |
| Screen resolution | 640 × 480 |
| Screen diagonal | 5.7 inches |
| Temperature range | -30 ÷ +60°C |
| Dimensions (without handle) | 260 × 152 × 55 mm |
| Weight | 2.3 kg |
| Protection | IP65 |
| Power supply | Autonomous (>8 hours), 230 V AC |
