Portable Vibration and Shock Recorder
The RL-R17 is a portable vibration and shock recorder designed for automotive durability testing, transport monitoring, and long-term dynamic measurement applications.
It enables engineers to capture acceleration events and vibration behaviour during real-world development activities, endurance testing, and logistics validation work. Built for autonomous operation and flexible sensor integration, the RL-R17 helps teams monitor mechanical loads and environmental conditions without the need for permanent test installations.
Supplied by Vehicle Testing Solutions as an authorised distributor of RULA Technologies products.
Portable Vibration and Shock Recorder
The RL-R17 is a portable vibration and shock recorder designed for automotive durability testing, transport monitoring, and long-term dynamic measurement applications.
It enables engineers to capture acceleration events and vibration behaviour during real-world development activities, endurance testing, and logistics validation work. Built for autonomous operation and flexible sensor integration, the RL-R17 helps teams monitor mechanical loads and environmental conditions without the need for permanent test installations.
Supplied by Vehicle Testing Solutions as an authorised distributor of RULA Technologies products.

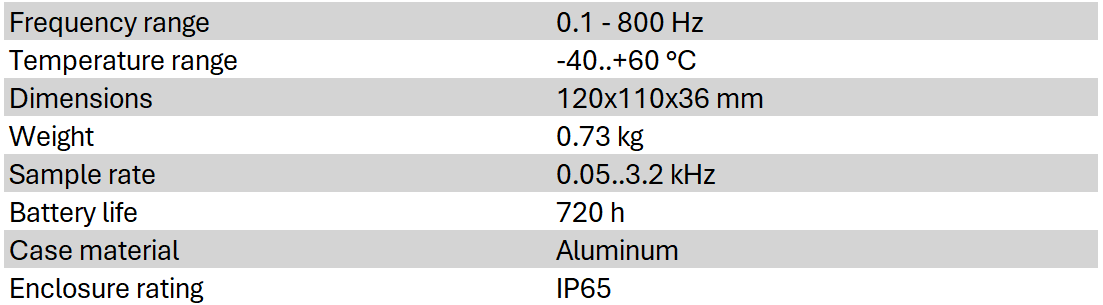

| Specification | Details |
|---|---|
| Number of acceleration measurement axes | 3 |
| Frequency range | 0.1 ÷ 800 Hz |
| Maximum acceleration (per axis) | ±15 g, ±190 g |
| Acceleration measurement error | 5 % |
| Sample rate | 50 ÷ 3200 Hz |
| Temperature measurement range | -40 ÷ +60°C |
| Autonomous operating time | Up to 720 hours |
| Dimensions | 120 × 110 × 36 mm |
| Weight | 0.73 kg |
| Case material | Aluminium |
| Protection rating | IP65 |
