Vibration control and data acquisition system
The RL-C25 is a vibration control and data acquisition system designed for multichannel automotive testing, durability validation, and advanced measurement applications. It is built for highly accurate data acquisition and offers a scalable architecture that can expand up to 512 channels in a synchronised data acquisition set. RULA states the hardware is modular, with swappable modules for 4 outputs, 8 inputs, or 4 strain gauge inputs, with controller configurations available in 24/0, 16/4, and 8/8 input/output variants.
It gives engineers a flexible platform for structured vibration testing and large-scale sensor measurement across vehicle, rig, and subsystem environments. The RL-C25 is powered by RULA’s TestUp and SignalUp software and supports automotive durability and validation workflows where scalable, high-accuracy measurement is required.
Supplied by Vehicle Testing Solutions as an authorised distributor of RULA Technologies products.
Vibration control and data acquisition system
The RL-C25 is a vibration control and data acquisition system designed for multichannel automotive testing, durability validation, and advanced measurement applications. It is built for highly accurate data acquisition and offers a scalable architecture that can expand up to 512 channels in a synchronised data acquisition set. RULA states the hardware is modular, with swappable modules for 4 outputs, 8 inputs, or 4 strain gauge inputs, with controller configurations available in 24/0, 16/4, and 8/8 input/output variants.
It gives engineers a flexible platform for structured vibration testing and large-scale sensor measurement across vehicle, rig, and subsystem environments. The RL-C25 is powered by RULA’s TestUp and SignalUp software and supports automotive durability and validation workflows where scalable, high-accuracy measurement is required.
Supplied by Vehicle Testing Solutions as an authorised distributor of RULA Technologies products.
| Specification | Details |
|---|---|
| Hardware Features | |

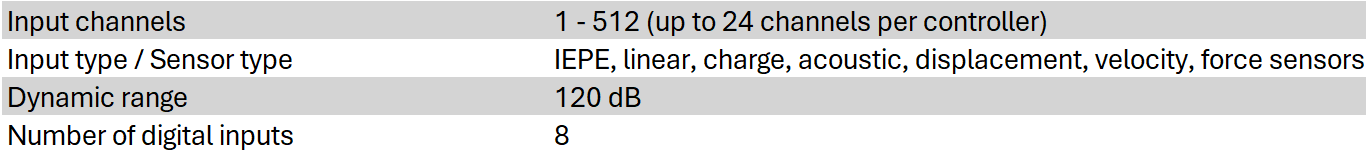

| Number of measuring channels | 1 ÷ 512 (up to 24 channels per controller) |
| Number of output channels | 0 ÷ 8 per controller |

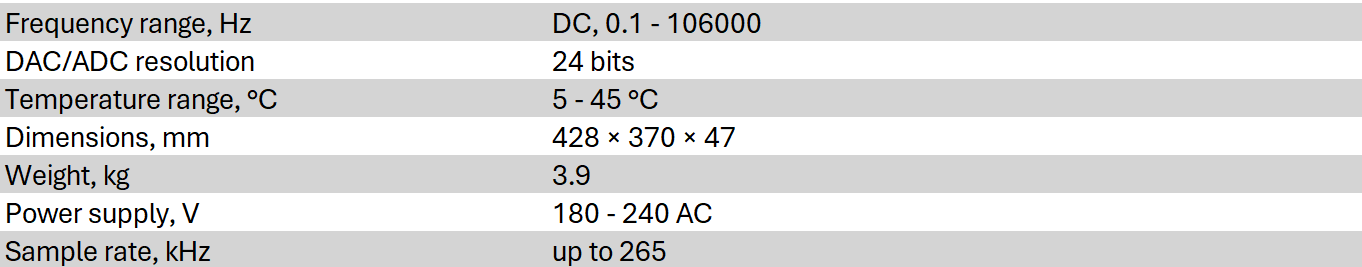

| Frequency range | DC, 0.1 ÷ 106000 Hz |
| ADC/DAC resolution | 24 bit |
| Sample rate | Up to 265 kHz |
| Dynamic range | 120 dB |
| Sensor types | IEPE, linear, charge, acoustic, displacement, velocity, force sensors, strain gauge |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Power consumption (per controller) | ≤75 VA |
| Dimensions & Parameters | |
| Dimensions | 430 × 375 × 45 mm |
| Weight | 3.9 kg |
| Supply voltage | 180 ÷ 240 AC, 12 ÷ 36 DC |
| Temperature range | +5 ÷ +45°C |
| Connectors & Interfaces | |
| Interfaces | RS-232, RS-485, USB 2.0, CAN, HDMI |
| Ethernet | 1 Gb/s Ethernet connection to PC |
| Auxiliary circuits | Power supply for sensors and external devices (12 and 24 V, 50 mA) |
