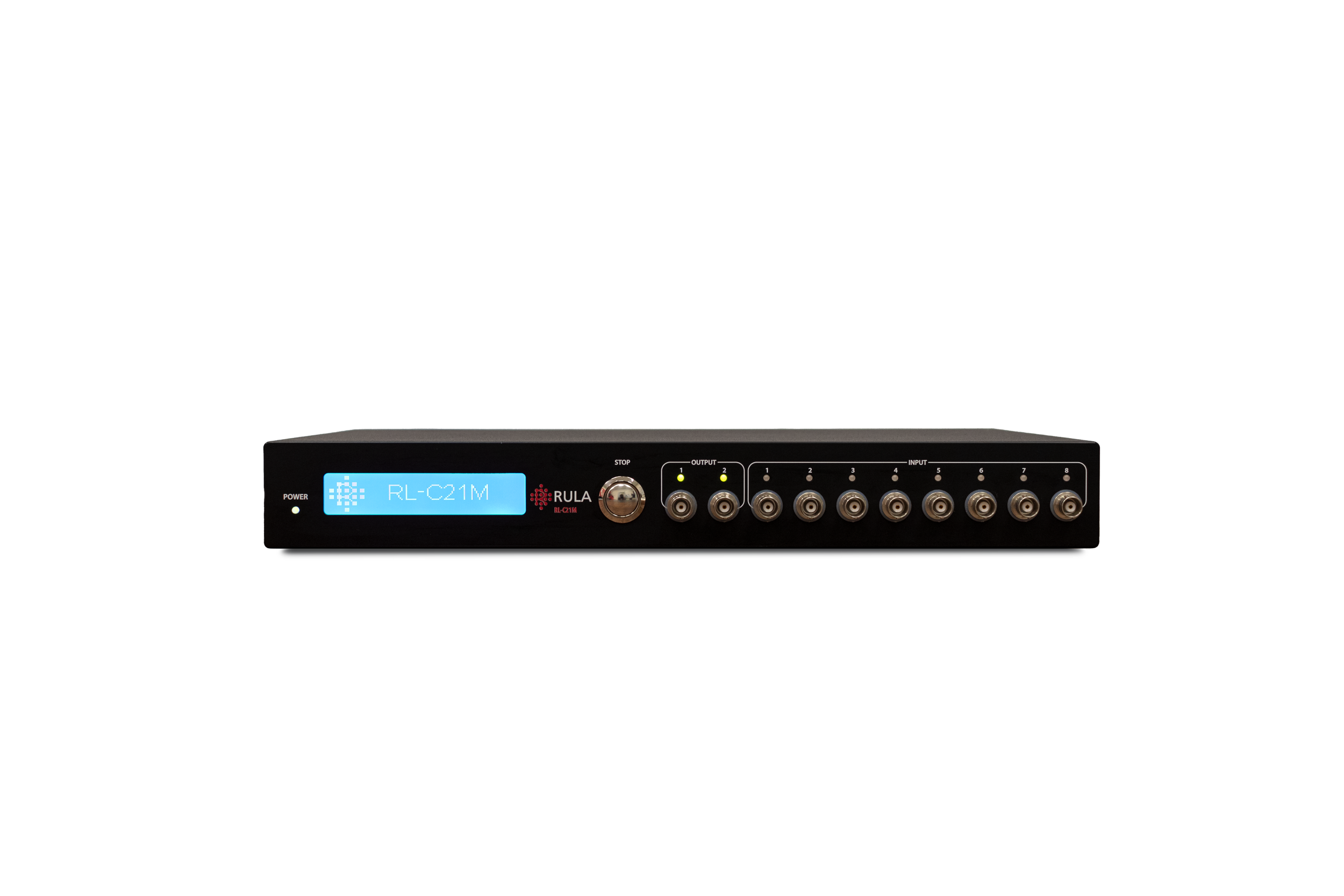

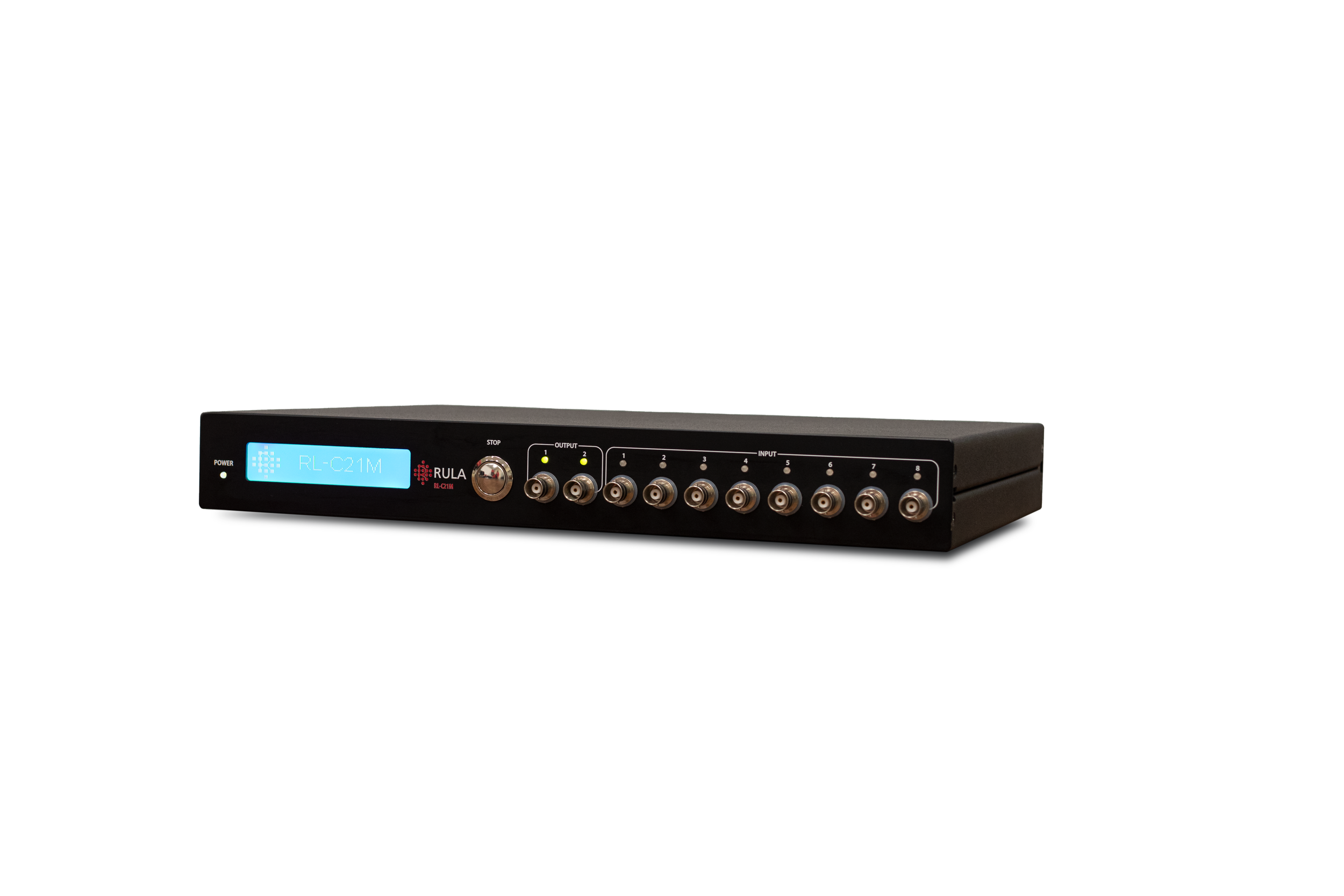

RULA RL - C21M

£0.00

Data acquisition system

The RL-C21M is a compact vibration control and data acquisition system designed for portable automotive testing, shaker control, and durability validation applications.

It enables engineers to perform controlled vibration testing and multi-sensor measurement in both laboratory and field environments, supporting structured validation workflows and flexible deployment across different test setups.

Designed for scalable channel expansion and stable control performance, the RL-C21M helps teams manage vibration test programmes with confidence.

Supplied by Vehicle Testing Solutions as an authorised distributor of RULA Technologies products.

Data acquisition system

The RL-C21M is a compact vibration control and data acquisition system designed for portable automotive testing, shaker control, and durability validation applications.

It enables engineers to perform controlled vibration testing and multi-sensor measurement in both laboratory and field environments, supporting structured validation workflows and flexible deployment across different test setups.

Designed for scalable channel expansion and stable control performance, the RL-C21M helps teams manage vibration test programmes with confidence.

Supplied by Vehicle Testing Solutions as an authorised distributor of RULA Technologies products.

Why It Helps Engineers

  • Enables portable vibration control and measurement across different test environments
  • Supports structured durability and validation testing workflows
  • Simplifies deployment for shaker testing and mobile validation setups
  • Helps maintain stable control performance during demanding vibration tests
  • Suitable for laboratory, rig, and field-based automotive testing applications

Technical Highlights

  • Compact vibration control and data acquisition system
  • Designed for electro-dynamic shaker testing applications
  • Supports scalable input and output channel configurations
  • Enables multi-sensor measurement and controlled vibration testing
  • Robust architecture for reliable operation in real-world development environments
Specification Details

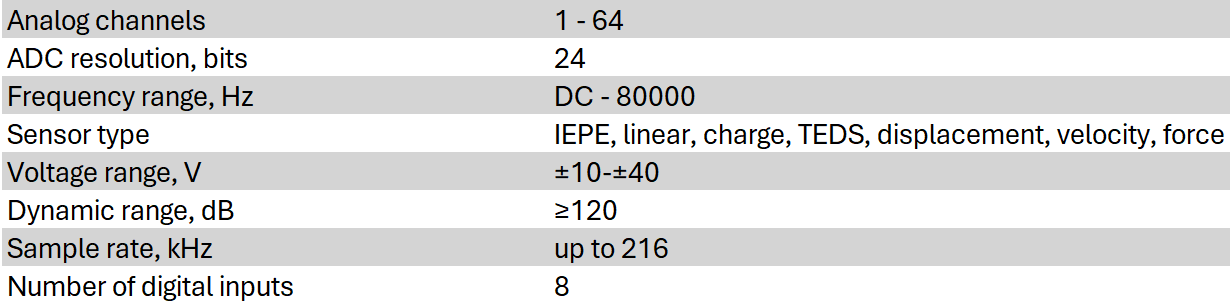

Inputs
Analog channels1 ÷ 64
ADC resolution24 bits
Frequency rangeDC ÷ 80,000 Hz
Sensor typeIEPE, linear, charge, TEDS, displacement, velocity, force
Voltage range±10 ÷ ±40 V
Dynamic range≥120 dB
Sample rateUp to 216 kHz
Number of digital inputs8
Outputs
Analog channels1 ÷ 16 control channels, up to 8 COLA channels
DAC resolution24 bits
Frequency rangeDC ÷ 80,000 Hz
Relative error of frequency setting≤5×10⁻⁵
Voltage range±10 ÷ ±40 V
Dynamic range120 dB

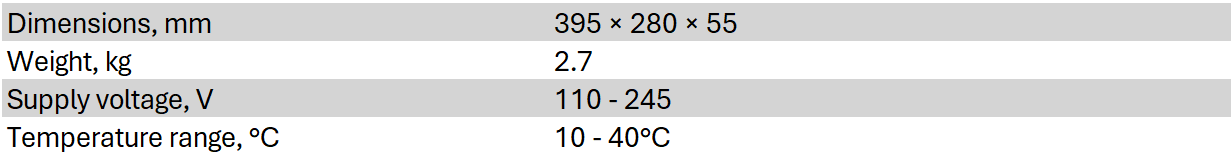

Main Hardware Features
Dimensions395 × 280 × 55 mm
Weight2.7 kg
Supply voltage110 ÷ 245 V
Temperature range+10 ÷ +40°C
