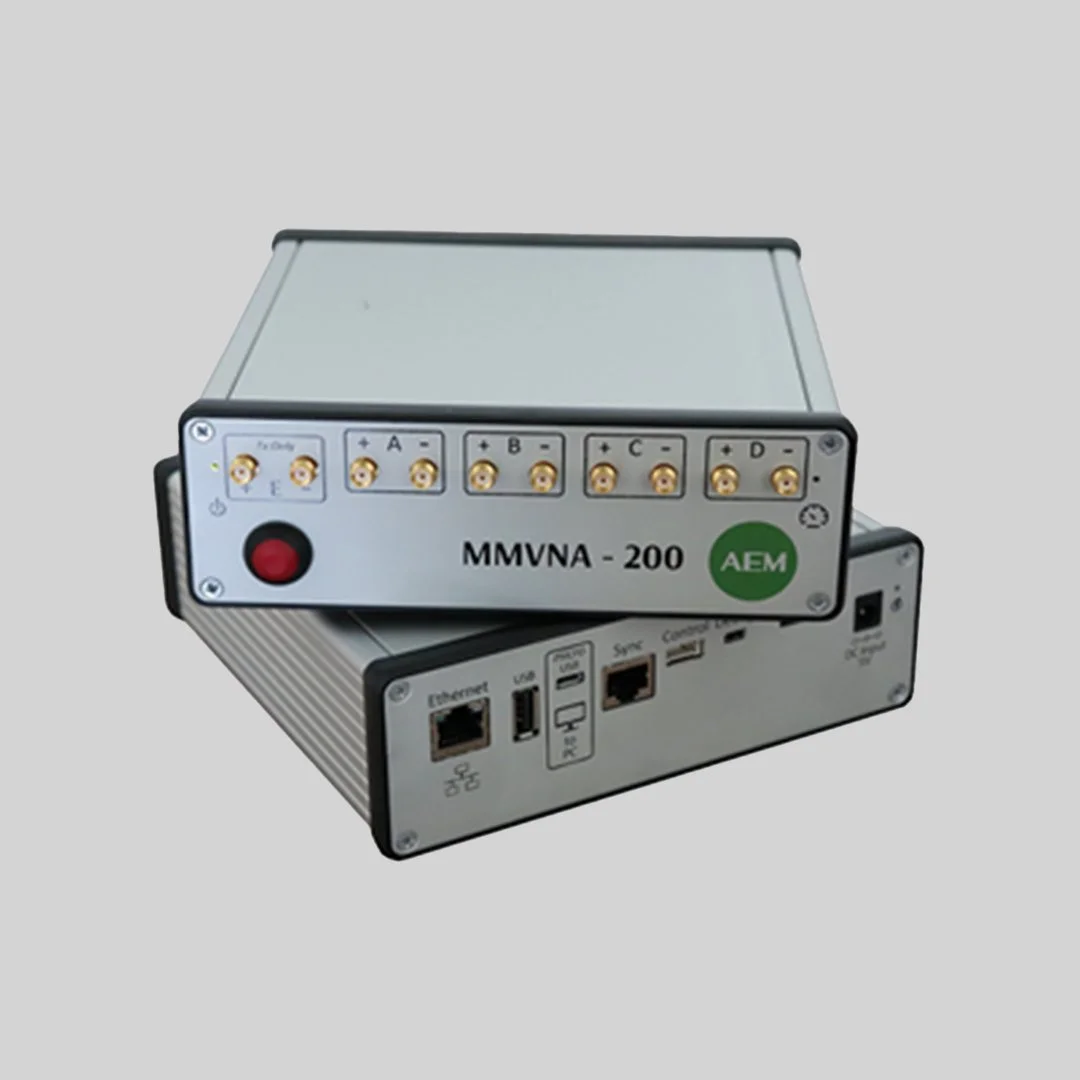

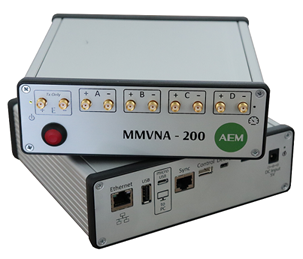

The MMVNA-200 is a multi-port vector network analyser capable of simultaneously measuring all ports and their interdependency.
KEY CAPABILITIES
• Measurements of multi-port devices under test (up to 8 ports) • End-to-end synchronized testing with two independent analysers
• DC measurements and RF measurements in the same instrument
• All S-parameter combinations automatically measured during every auto test within seconds, with ability to choose parameters of interest
• Adheres to Open Alliance, BroadR-Reach, 802.3bw, 802.3bp and 802.3ch (draft) for the following s-parameter tests:
• Link segments and components; cables, connectors, and wire harnesses
• Open Alliance VNA Reference Measurements
• Equipment connector interfaces (ECU, MDI)
• Transmitter’s and Receiver’s
